Collective Bikes

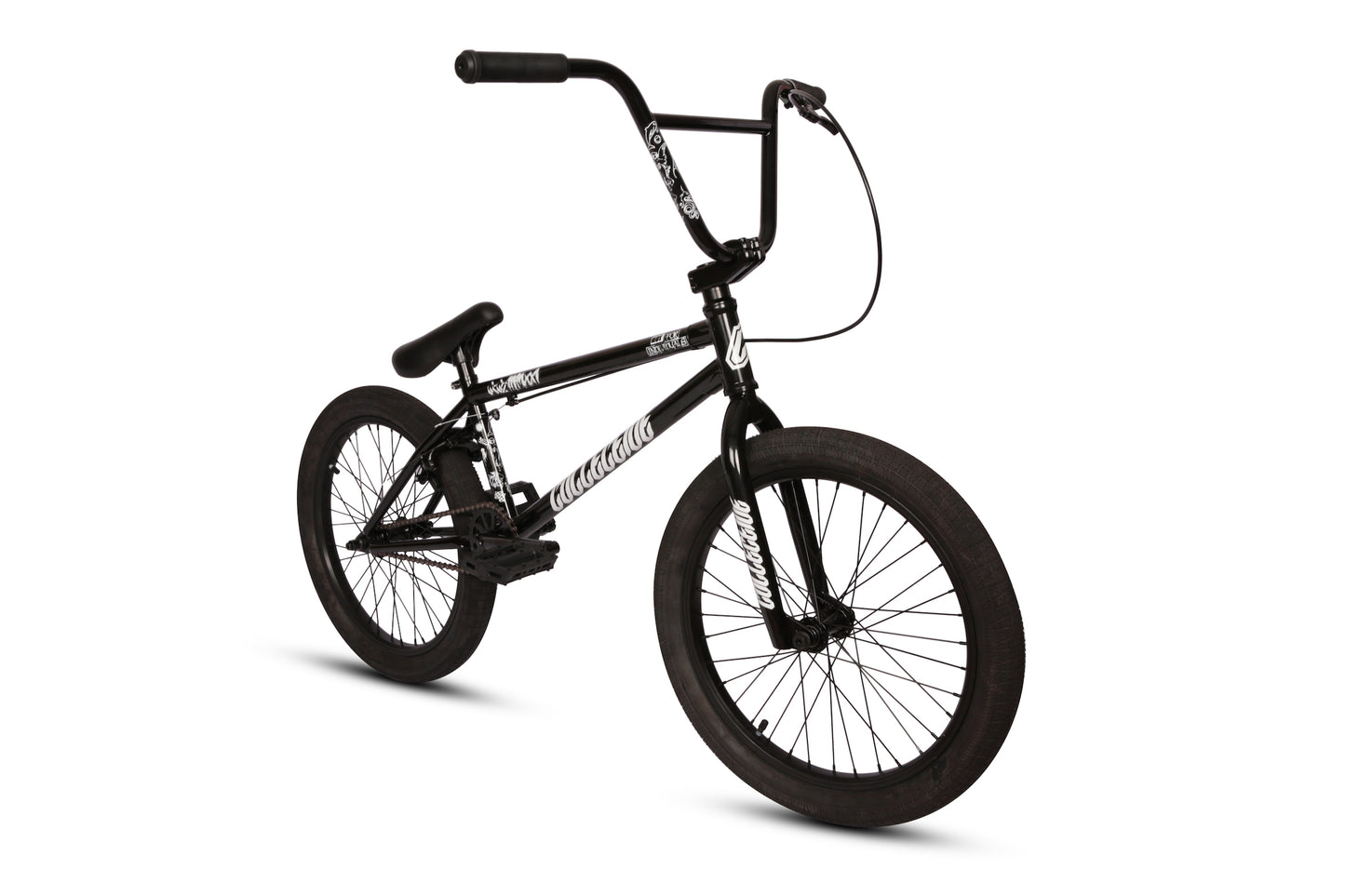

CS-PRO BMX

Name: CS-PRO BMX
Brand: Collective Bikes
SKU: CBC1C2C-B
Price: 300.0 GBP
Availability: InStock

£300.00 GBP

~~£600.00 GBP~~ £300.00 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Style BMX

Hub Type Cassette Freecoaster

Product variants

Quantity

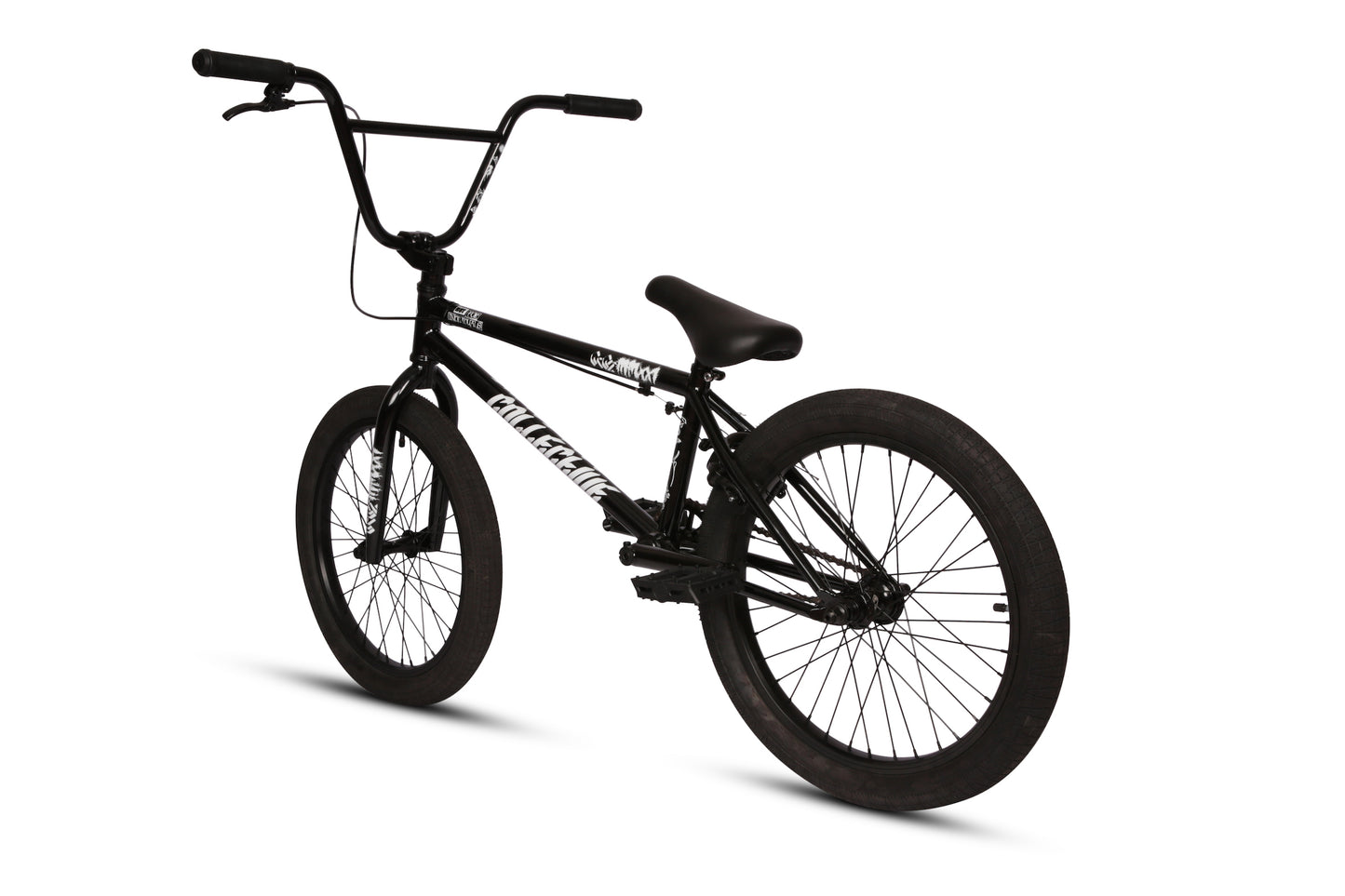

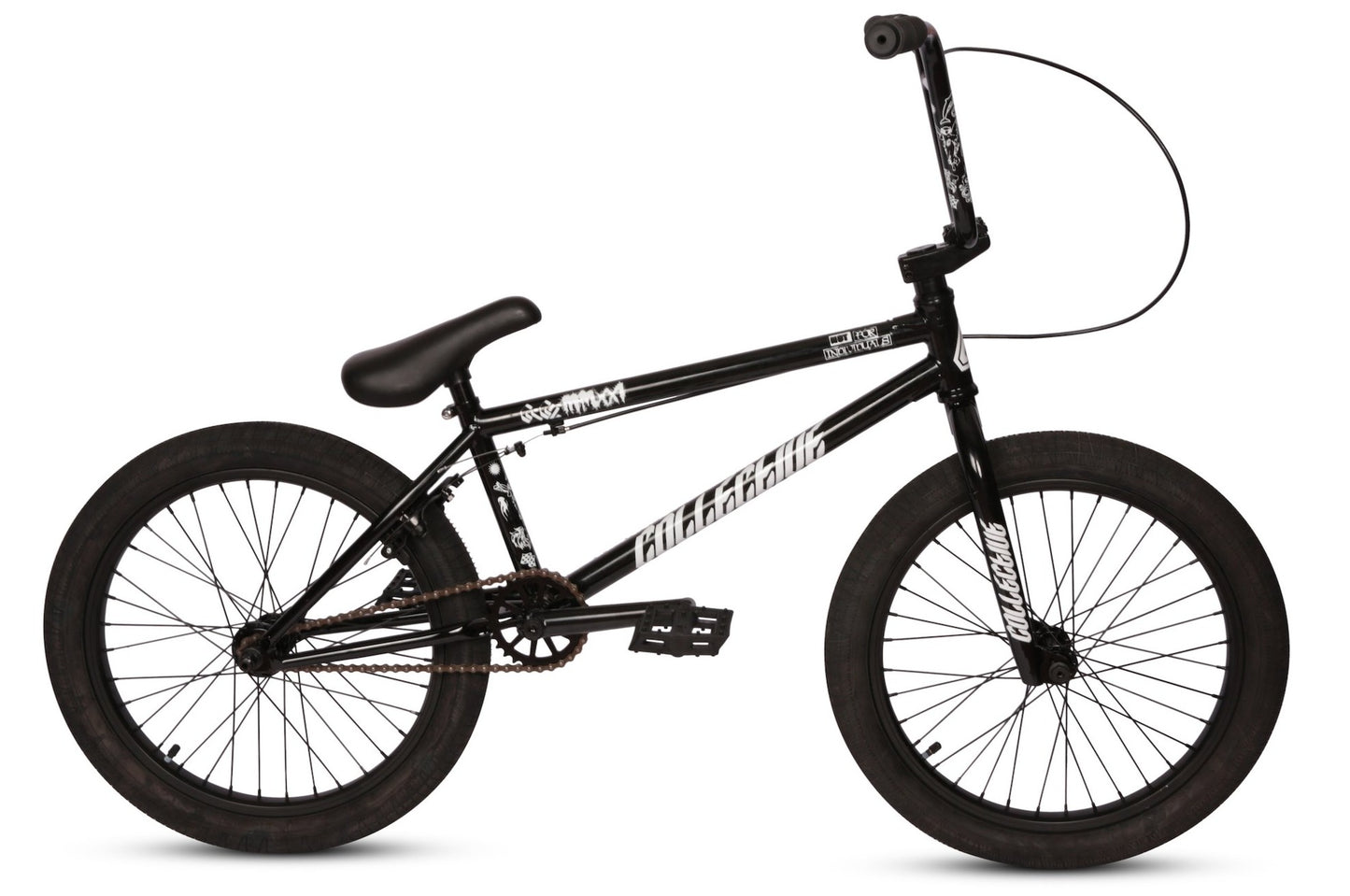

Our flagship 20'' BMX. Premium and extremely strong, easily competing with other professional complete BMXs worth over £800.

Available in both Cassette and Free Coaster!

SPECS:

FRAME: FULL 4130 CRMO

TOP TUBE: 21"
FORK: FULL 4130 CRMO / 28MM OFFSET
FORK TOP CAP: FULL 4130 CRMO / 28MM OFFSET

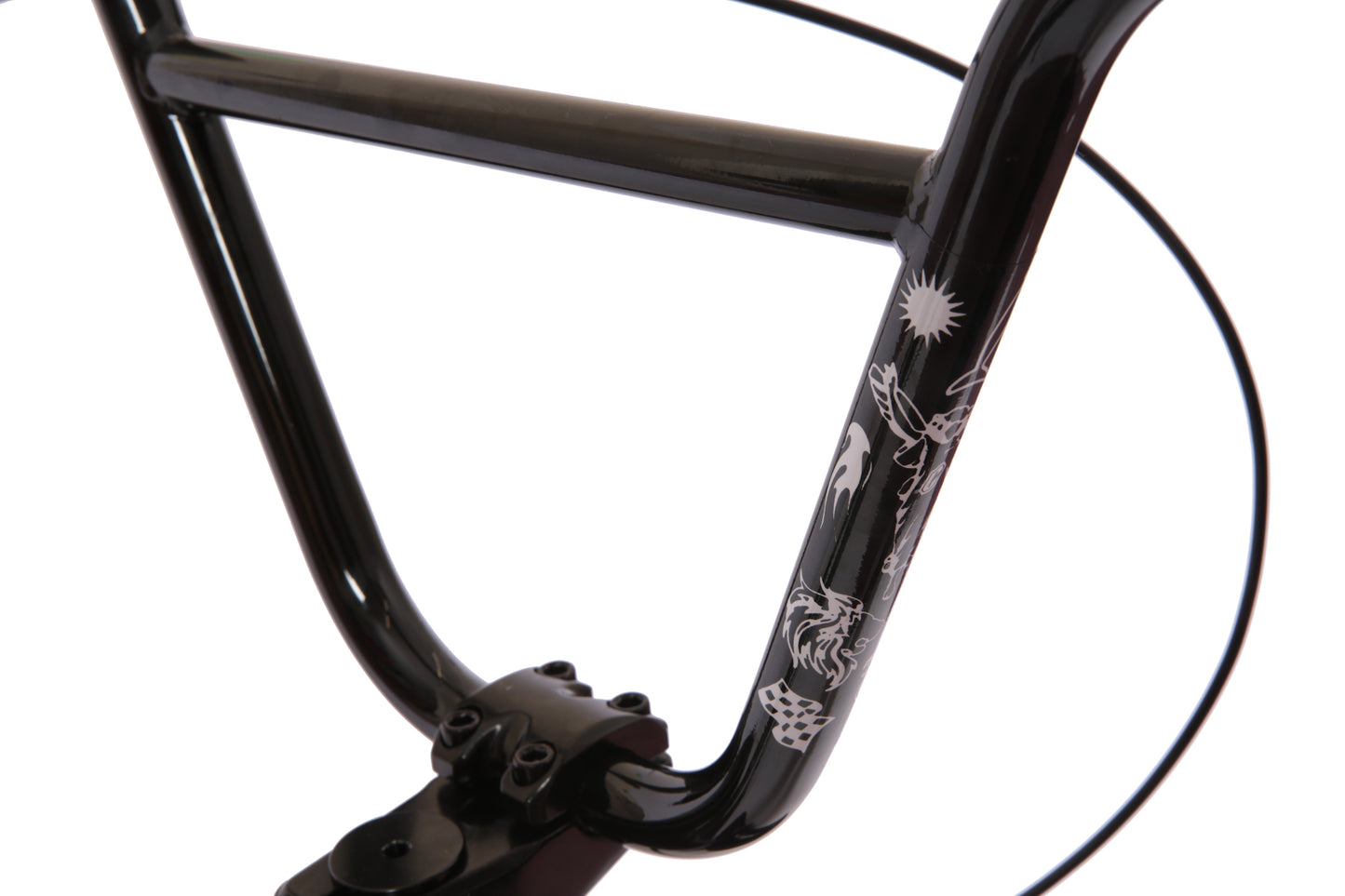

HANDLEBAR : FULL 4130 CRMO / 9.5"
STEM: ALLOY TOP LOAD STEM, FORGE BODY, FORGED CAP, 28.6mm. Barbore: 22.2mm, Height: 30mm.
BRAKE LEVER: REAR, ALLOY BRAKE LEVER/CLAMP 22.2mm
HEADSET: FOR 1-1/8" FORK STEERER, W/5MM SPACER

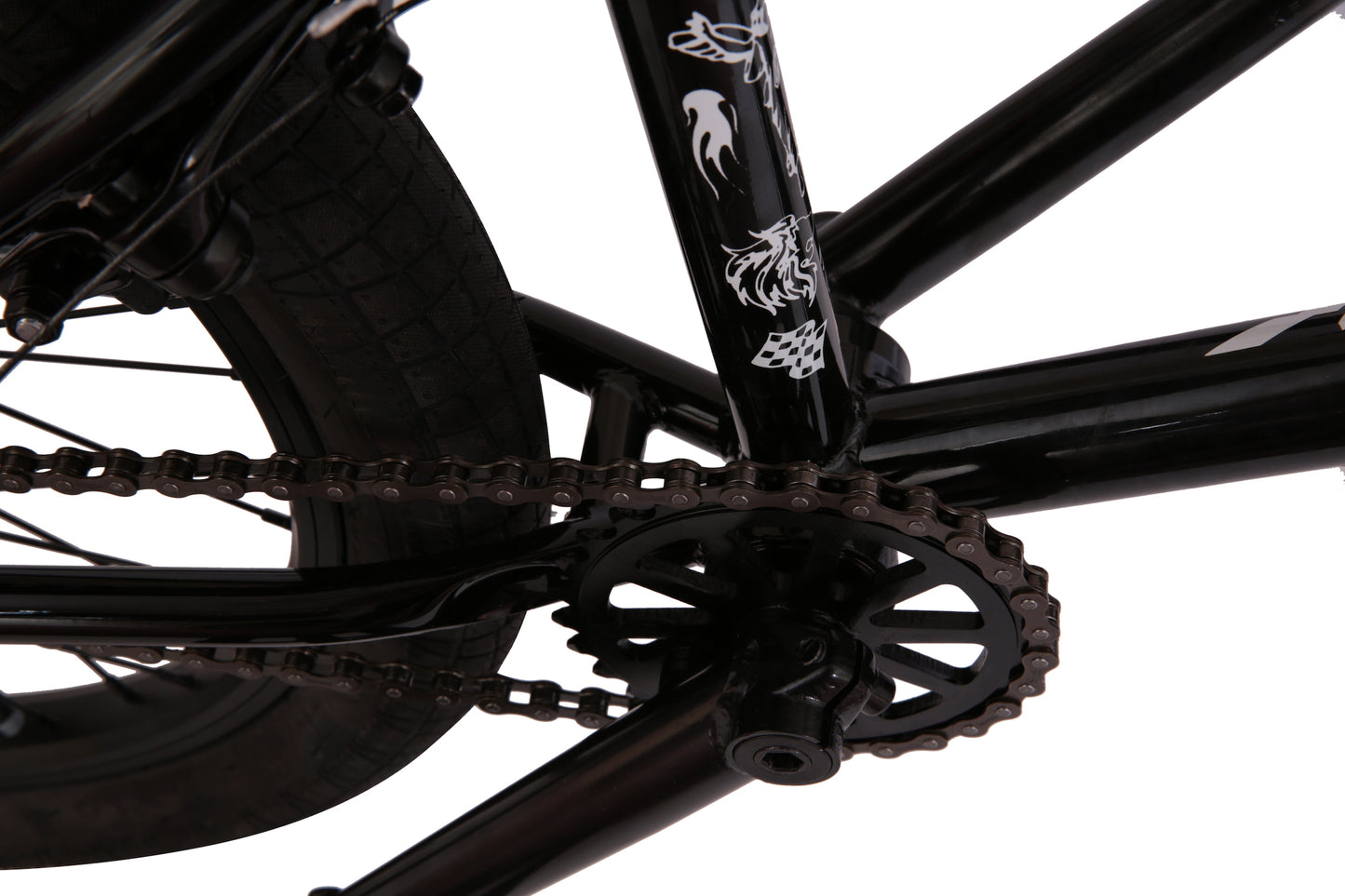

CRANKS: L175MM, 4130 CR-MO TUBULAR WELDED, 8T-19MM, 3PCS

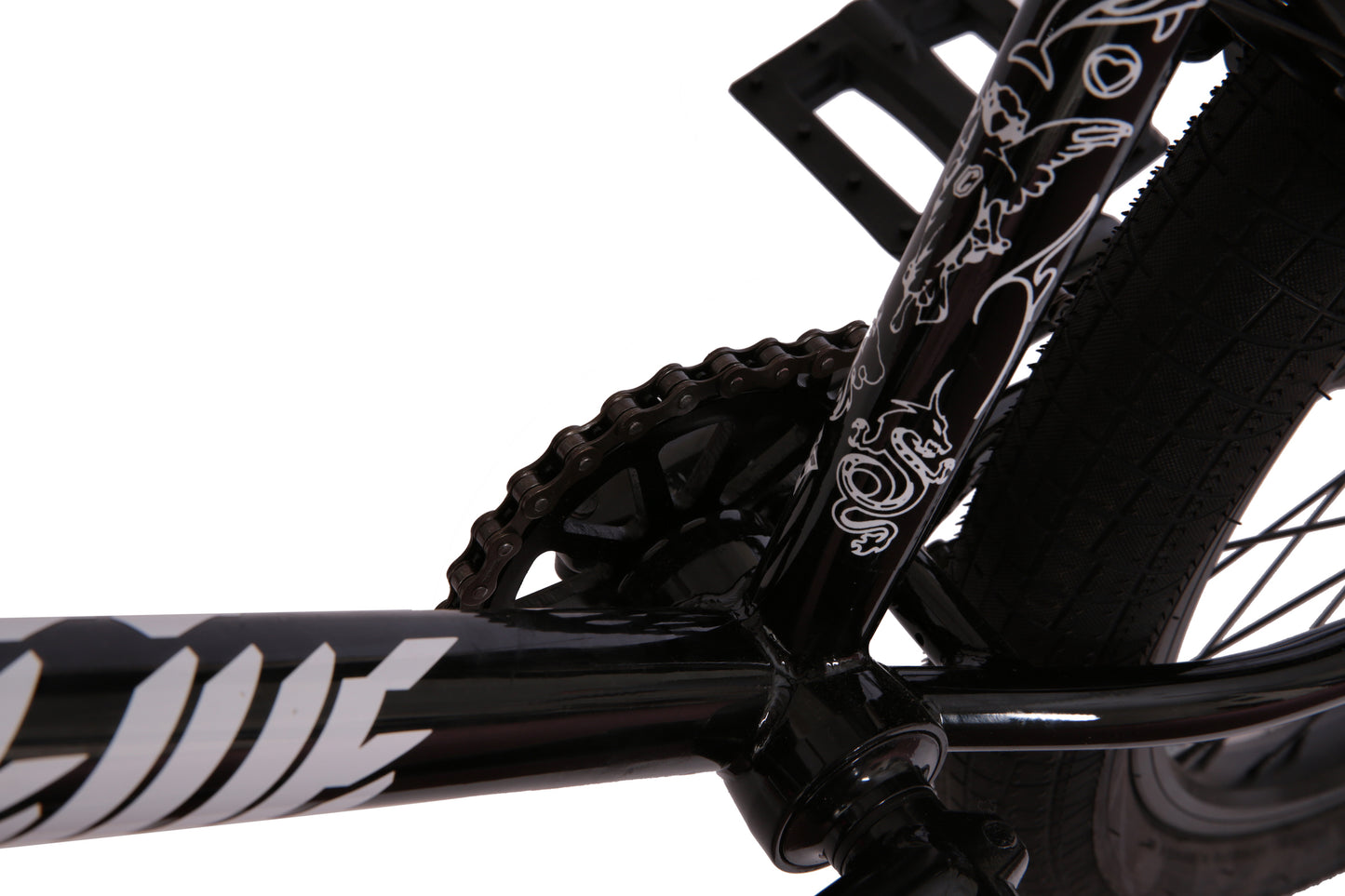

SPROCKET: 1/8"*25T*AL6061 Full CNC sprocket
CHAIN: 410 1/8x72L
PEDALS: 9/16" CR-MO AXLE, NYLON
FRONT HUB: SEALED CRMO, 14G*OLD100*36H, L160mm*3/8"

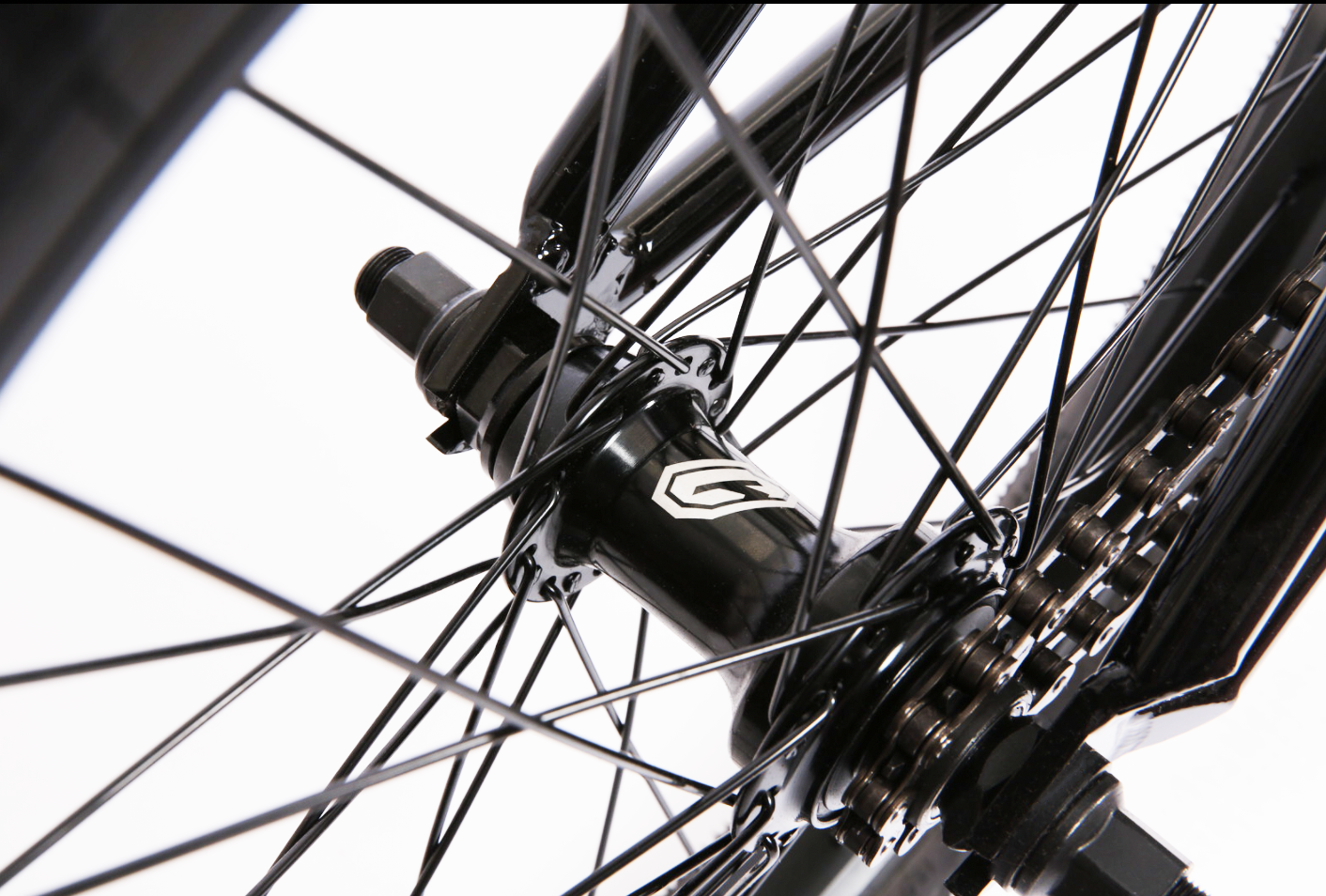

REAR HUB: SEALED 9T, RHD 1pc driver cassette hub
FRONT RIM: 20" 36H BLACK
REAR RIM: 20" 36H BLACK
SPOKES: 14G, W/16MM BRASS NIPPLE
TIRES: 20"*2.35"/ 60TPI
TUBES: 20"X2.2"-2.4", A/V, LOW LEAD
SEAT: Pivotal 3pcs seat
SEATPOST: PIVOTAL, 25.4mm
SEATCLAMP: ALLOY, 28.6MM.

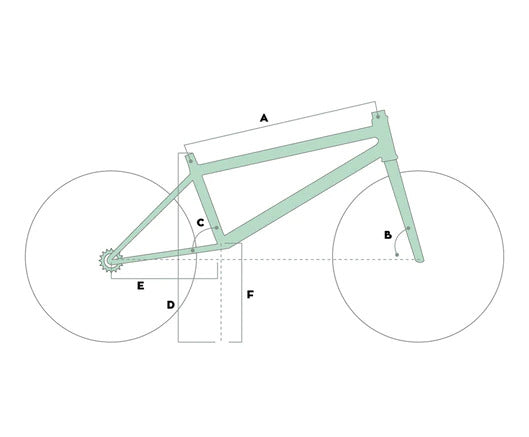

GEOMETRIES:

A: Top Tube 21 (533.4mm)
B: Head Angle 75 Degrees
C: Seat Angle 71 Degrees
D: Seat Tube 9.00 (228.6mm)
E: Chainstay 12.99 (330mm)
